Johnson F7B-8 Foot Mount Pump 1" BSP with Mechanical Seal

Johnson F7B-8 Foot Mount Pump 1" BSP with Mechanical Seal

Name: Johnson F7B-8 Foot Mount Pump 1" BSP with Mechanical Seal
SKU: 10-24572-01

Product code: 10-24572-01
Manufacturer SKU: 10-24572-01

Johnson flexible impeller marine engine cooling pump 10-24572-01 fits the following boat engines:- Volvo Penta MD2030 & MD2040- CMD ATM100- Isuzu 4BG1 & 6BG1 Gen-setThis... Read more

Description

Johnson flexible impeller marine engine cooling pump 10-24572-01 fits the following boat engines:

- Volvo Penta MD2030 & MD2040

- CMD ATM100

- Isuzu 4BG1 & 6BG1 Gen-set

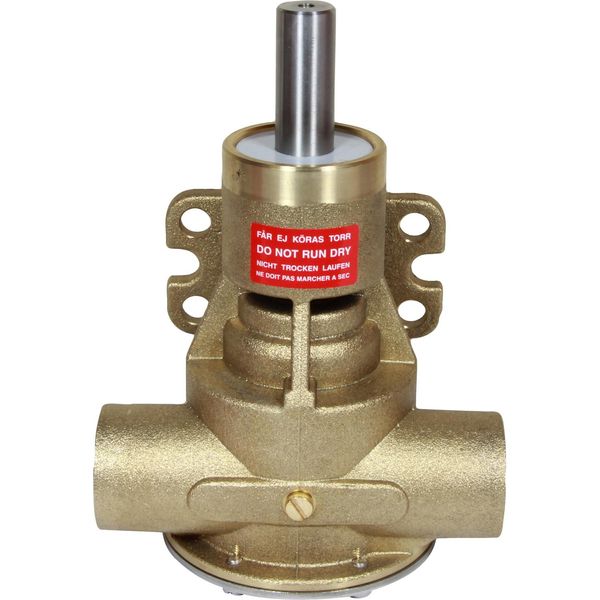

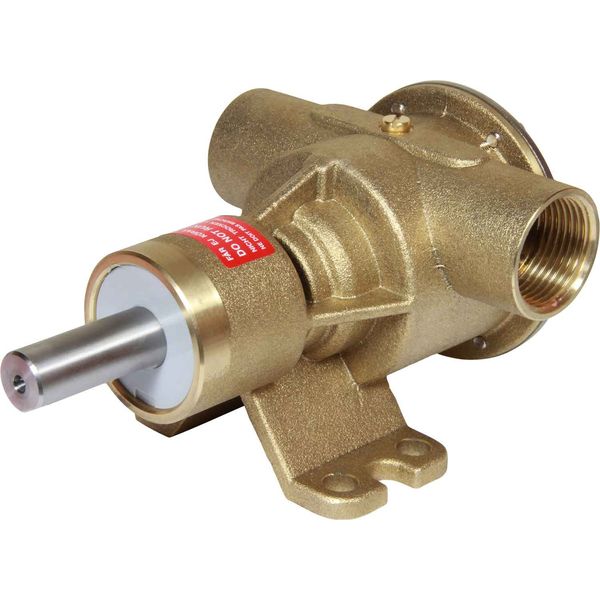

This Johnson F7B-8 pump is pulley driven and foot mounted with a 17mm shaft. Replaces Johnson 10-24070-1 (F7B-8), 10-24465-01 (F4B-9), 10-24572-13 (F7B-8), Volvo Penta 3580945 water pumps.

Compact multi-purpose self priming impeller pumps. Pulley or in line driven. Ideal for engine cooling, bilge, deckwash, fresh water, fuel transfer etc. Also ideally suited for on shore to empty septic tanks, to flush clean and to fill water tanks. Now fitted with wear plates and S/S end covers.

Technical Specifications (Full details available on request):

Body: Bronze

Shaft: Stainless Steel, double ball bearing mounted

Seal: Mechanical Seal

Impeller: MC97 & Neoprene (standard) or Nitrile (on request)

Cam: Full (standard) or Reduced (on request)

Model: F7B-8

Table: D

Weight: 1.9kg

Impeller: 09-1028B (Neoprene)

Specifications

Flow Rate Description	107 LPM at 2000 RPM
Material	Bronze Body, Stainless Steel Shaft
Suitable For	Isuzu\|Volvo
Drive Type Description	Pulley Driven
Impeller Fitted	09-1028B
Replaces	Johnson F7B-8 (10-24070-1, 10-24572-13) & F4B-9 (10-24465-01), Volvo Penta 3580945
Inlet Outlet	1" BSP Female
Brand	Johnson
Series	F7B-8
Model	10-24572-01
Height Description	93mm (3.7")
Width	120mm (4.72")
Length	170mm (6.69")
Diameter Description	Shaft: 17mm (5/8")
Mounting Description	Pedestal Mount
