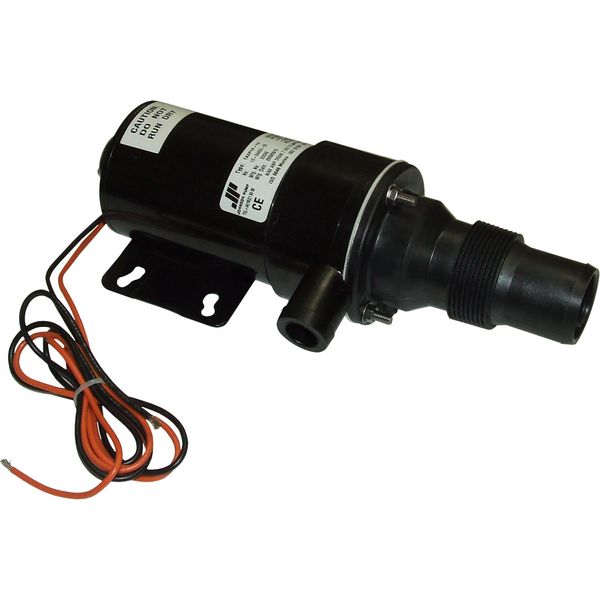

Johnson TA3P10-19 Macerator Pump 24V
Product code:
10-24453-05
Manufacturer SKU:
10-24453-05
The Johnson TA3P10-19 macerator pump is specifically designed to dispose of toilet waste using a rotary cutter system and a self-priming flexible impeller pump. The pump is suitable for use with manual... Read more
Description
The Johnson TA3P10-19 macerator pump is specifically designed to dispose of toilet waste using a rotary cutter system and a self-priming flexible impeller pump. The pump is suitable for use with manual toilet pumps and toilets without a macerator fitted.
The Johnson macerator waste pump should be installed directly on the toilet bowl discharge outlet or as close as possible to the holding tank so it can be effectively and entirely emptied overboard.
With a phenol plastic body and a thermoplastic polyester housing, the macerator pump is suitable for use within the marine environment. The waste pump also features a stainless steel shaft as well as a nitrile impeller.
Johnson offer the following wiring advice to give maximum performance, worth considering when purchasing the wiring for this macerator pump:
Wire Size | Maximum Wire Length (12V) | Maximum Wire Length (24V)
1.5mm² (#16 AWG) | 2.5m | 11.0m
2.5mm² (#14 AWG) | 4.2m | 18.3m
4mm² (#12 AWG) | 6.8m | 29.3m
6mm² (#10 AWG) | 10.1m |
10mm² (#6 AWG) | 16.9m |
16mm² (#4 AWG) | 27.0m |
Johnson Macerator Pump Features & Benefits:
- Easy to install mounting bracket
- Very energy efficient pump
- Rotary cutter
Johnson 10-24453-05 Spare Parts:
Position | Spare Part | Part Number | Quantity
1 | Motor (12V) | 01-24466-02 | 1
2 | Body | 01-35275-2 | 1
3 | Mill Housing | 01-35719-1 | 1
4 | Impeller | 09-1052S-9 | 1
5 | Wear Plate | 37-3206221 | 1
6 | Gasket | 37-3206217 | 1
7 | Lip Seal | 05-29-135 | 1
8 | O-Ring | 05-06-583 | 1
9 | Cutter | 37-3206218 | 1
10 | Screw | 05-04-577 | 4
11 | Nut | 05-05-511 | 3
12 | Washer | 05-01-520 | 3
13 | Screw | 05-04-643 | 3
14 | Fuse | 05-17-535 | 1
| Service Kit | 09-45595 | 1
| Flow Rate Description | 37 LPM (9.8 US GPM) |
| Outlet | Left Hand 25mm (1") ID Hose |
| Hose Size | 25mm / 1", 38mm / 1-1/2" |
| Self Primes up to | 0.8 Metres (2.6 Feet) |
| Brand | Johnson |
| Series | TA3P10 |
| Model | 10-24453-05 |
| Voltage Description | 24V DC |
| Amps Description | 8A Maximum |
| Fuse | 12A |
| Approvals | CE Listed, Ignition Protected Motor (ISO 8846) |
| Height Description | 82mm (3.2") |
| Width | 108mm (4.25") |
| Length | 230mm (9") |
