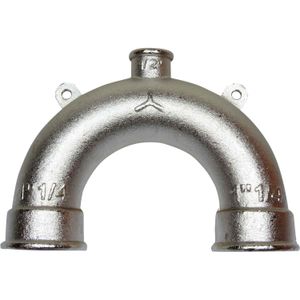

Maestrini Brass Anti-Siphon Loop (1-1/4" BSP / 1/2" BSP Vent)

Maestrini Brass Anti-Siphon Loop (1-1/4" BSP / 1/2" BSP Vent)

Name: Maestrini Brass Anti-Siphon Loop (1-1/4" BSP / 1/2" BSP Vent)
SKU: 410016

Product code: 410016
Manufacturer SKU: 0085G

Description

This Maestrini anti-siphon device is made from brass. The anti-siphon device allows fluid to flow in the intended direction but when the flow is reversed, the vacuum will operate the anti-siphon valve which will break the siphoning effect. This anti-siphon loop is used in conjunction with 410023 siphon break valve.

Typical applications for this anti-siphon loop are boat water intakes, exhaust injection lines and toilet systems where installed equipment is below the waterline.

Specifications

Material	Brass
Primary Construction	Brass
Thread Connection	BSP
Thread Size	1-1/4"
Thread Gender	Female
Valve Design	Siphon Break Valve
Connections Description	Port Size: 1-1/4" BSP Female, Vent Pipe: 1/2" BSP Female
Pressure Rating	363 PSI (25 Bar)
Thread Size Description	1-1/4" BSP Female
Brand	Maestrini
Height Description	125mm (4.9")
Width	175mm
Depth	51mm (2")
Country of Origin	Italy
