Patay Ocean Master Bilge Pump DTI 1-1/2"
Product code:
9-42000
Manufacturer SKU:
A2000
OCEAN MASTER DD120 BILGE PUMPSThe choice are two types: Model DD120M is approved by the Department of Trade and Industry as a lifeboat pump. It has handwheels mounted on swivel arms, and... Read more
Description

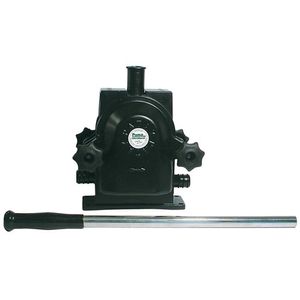

OCEAN MASTER DD120 BILGE PUMPS
The choice are two types: Model DD120M is approved by the Department of Trade and Industry as a lifeboat pump.
It has handwheels mounted on swivel arms, and is otherwise the same as Model DD120A pump, where the handwheels are mounted on long studs. The DD120A is designed to be mounted under deck and is supplied complete with a deck plate and seal.
The large solids handling ability of the DD120 pumps make them ideal for bilge and for holding tank pump out.
Capacity 136 lpm (30 galls).
Removable stainless steel handle.
Technical Specifications:
Lift: 6m
Head: 6m
Hose: 38m (1.1/2")ID
| Flow Rate Description | 135 LPM (29.6 GPM / 35.6 US GPM) |
| Maximum Pump Head | Over 4.27 Metres |
| Hose Size | 38mm / 1-1/2" |
| Maximum Recommended Head | 6 Metres (19.6 Feet) |
| Maximum Suction Lift | 6 Metres (19.6 Feet) |
| Removable Handle | Yes |
| Inlet Outlet | To Suit 38mm (1-1/2") ID Hose |
| Brand | Patay |
| Series | Ocean Master |
| Application | Bilge Water |
| Model | DD120M |
| Voltage Description | Manual |
| Approvals | Suitable for use on Lifeboats due to DTI Approval |
| Height Description | Without Handle: 265mm (10.4") |
| Width | 183mm (7.2") |
| Length | 356mm (14") |
