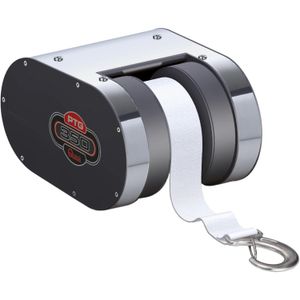

Quick PTG350 Capstan with Strap Roller (Horizontal / 150W / 12V)

Name: Quick PTG350 Capstan with Strap Roller (Horizontal / 150W / 12V)
SKU: Q-PTG0117

Product code: Q-PTG0117
Manufacturer SKU: FSPT0350G000A00

Description

The Quick PT Pontoon 350G horizontal capstan winch is suitable for weighing anchor onboard pontoon or boats where space is limited, as well as being used as a fishing capstan or to lift the tender onboard a yacht. The capstan features an AISI 316 stainless steel and anodised aluminium construction, making it well protected and durable. The PT 350g capstan is easy to install above or below the deck and can retrieve a strap measuring 48mm wide by 7.5 metres long.

Key Features

Capstan with roller for strap

AISI 316 stainless steel and anodized aluminium

Multi-purpose capstan

Specifications

Material	Stainless Steel
Primary Construction	Stainless Steel
Brand	Quick
Series	Pontoon - PT
Model	350 G
Voltage Description	12V DC
Wattage	150W
Working Load	40kg (88 lb), Maximum: 100kg (220 lb)
Maximum Pull Load	260kg (573 lb)
Maximum Chain Speed	20.8 m/min (68.2 ft/min), At Working Load: 19.3 m/min (63.3 ft/min)
Amps Description	12A at 40kg
Fuse	15A Protection Circuit Breaker
Contents	Capstan, Contactor Unit, Bolts and Screws, Drill Template, User Manual
Approvals	CE
Height Description	173mm (6-13/16")
Width	220mm (8-43/64")
Depth	294mm (11-37/64")
Diameter Description	Mounting Holes: 4x 9mm (23/64")
Thickness	Deck: 20mm - 40mm (3/4" - 1-9/16")
Dimensions	Distance Between Mounting Holes: 160mm x 105.5mm (6-19/64" x 4-5/32")
Size	Motor Cable: 10mm2 (AWG7)
