Scanstrut SC80 Satcom Antenna Mount in Stainless Steel 316 (JRC & KVH)
Product code:
6-80622
Manufacturer SKU:
SC80
Scanstrut SC80 Antenna Mount is made from marine grade 316 Stainless Steel and is mirror polished for hi-end finish. The GPS antenna mount provides an ultra-robust option for mounting some of the worlds... Read more
Description
Scanstrut SC80 Antenna Mount is made from marine grade 316 Stainless Steel and is mirror polished for hi-end finish. The GPS antenna mount provides an ultra-robust option for mounting some of the worlds premium Satcom technologies. With a unique cable gland system for up to 5 cables, all running through a KDL gland plate, it gives the SC80 an IP68 rating.
The mount fits the following Satcoms:
- JRC JUE-501 Fleetbroadband
- KVH Fleet BB 500 / V7, V7IP (M9 matching dome), TracPhone V7-HTS, TracVision G8, TracVision M9 & TracVision TV8
The antenna will fix through external fixings and pre-drilled mounting holes, this makes them easy to install and maintain. All cable routing for the antenna is through the base of the mount which leaves a clean and simple finish.
This mount reduces the overall footprint of your Satcom Antenna, giving a greater choice of where to install it, and also aids installation on narrow radar arches.
- Cables installed through KDL gland plate with IP68 rating for complete watertight installation
- Raises antenna by 80mm, allowing inspection hatch to open fully for easy cable connection

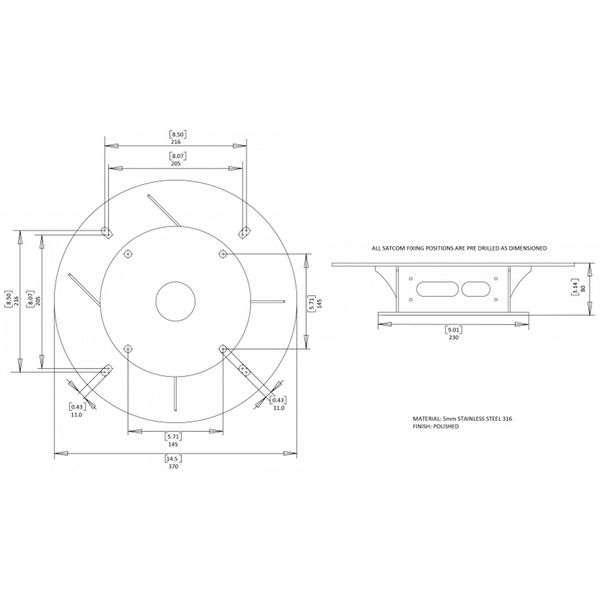

| Material | 5mm Marine-Grade Stainless Steel 316 |
| Brand | Scanstrut |
| Height Description | 80mm (3.14") |
| Diameter Description | Top: 370mm (14.5"), Bottom: 230mm (9.01"), Mounting Holes: 11mm (0.43") |
| Dimensions | Distance between mounting hole centres: 200mm to 216mm (7.9" - 8.5") square, 145mm (5.71") square |
