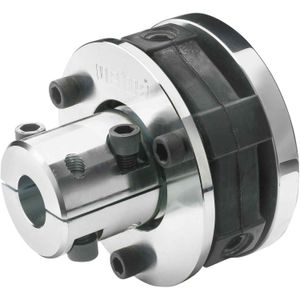

Vetus Flexible Shaft Coupling (25mm Diameter Shaft / Type 1)

Name: Vetus Flexible Shaft Coupling (25mm Diameter Shaft / Type 1)
SKU: V-BULFL0125

Product code: V-BULFL0125
Manufacturer SKU: BULFL0125

Vetus Bullflex 1 flexible coupling suits a 25mm shaft and ensures optimum damping of vibrations. With a special centring ring it gives excellent alignment along with ease of installation.- DIN... Read more

Description

Vetus Bullflex 1 flexible coupling suits a 25mm shaft and ensures optimum damping of vibrations. With a special centring ring it gives excellent alignment along with ease of installation.

- DIN 6270B = pleasure craft kW (HP)/100 shaft RPM: 0.8 (1.1)

- DIN 6270A = commercial craft kW (HP)/100 shaft RPM: 0.5 (0.7)

- Max. torque Nm DIN 6270B: 75

- Max. torque Nm DIN 6270A: 45

- Max. RPM at zero misalignment: 7000

- Max. RPM at 2° misalignment: 3500

Specifications
