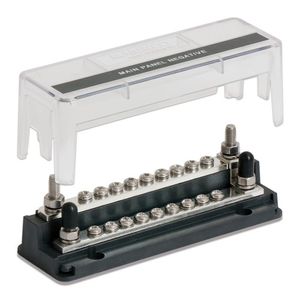

BEP Pro-Installer Busbar Z 18-Way 200A
Product code:
8-93511
Manufacturer SKU:
777-Z18W-200
Marinco BEP Products have created a completely new concept for small cable termination with the Z-Bar range. These busbars maximize power density by utilizing high and low level bars to optimize cable... Read more
Description
Marinco BEP Products have created a completely new concept for small cable termination with the Z-Bar range. These busbars maximize power density by utilizing high and low level bars to optimize cable runs, saving even more installation space.
Specifications:
10 Way and 18 Way versions
4x 6mm (1/4") studs with anti-seize lubricant
4mm (5/32") terminals with captive lock washers
200A maximum per bar (2x 200A)
50 VDC
Tinned CDA102 Copper conductors
Stainless steel studs, washers, nuts for longevity in the marine environment
Metric threads
| Brand | BEP |
| Rating | 150A |
This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.
| Part No | 8-93510 | 8-93511 |
| Description | 10 Way Z Busbar | 18Way Z busbar |
| Stud Detail | 4x6mm18 x 4mm | 4 x 6mm18 x 4mm |
| Amps | 2 x 200A | 2x 200A |
| Dimensions (mm) | 98 x 49 x 51 | 147 x 49 x 51 |
| Weight | 203g | 280g |
| Footprint | 1x | 1.5x |
