Blue Sea Common Mini Bus 4x 10-32" with Cover (100A)
Product code:
8-22315
Manufacturer SKU:
2315-BSS
Blue Sea 100 Amp Common Mini Busbar is designed for installations where space is a premium. The Busbar features 4 Screw Terminals and 2 Terminal Studs and a clear cover.Stud Torque: 18 in-lb... Read more
Description
Blue Sea 100 Amp Common Mini Busbar is designed for installations where space is a premium. The Busbar features 4 Screw Terminals and 2 Terminal Studs and a clear cover.
Stud Torque: 18 in-lb (2.03 Nm)
| Material | Bus: Tin-Plated Copper (CDA 110 / UNS 11000), Base: Glass Reinforced Thermoplastics (UL 94-V0 Rated), Cover: Clear Polycarbonate |
| Primary Construction | Tinned Copper |
| Connections Description | Terminals: #10-32 Stud |
| Brand | Blue Sea Systems |
| Colour | Black |
| Voltage Description | 300V AC / 48V DC maximum |
| Amps Description | Continuous: 100A |
| Approvals | CE |

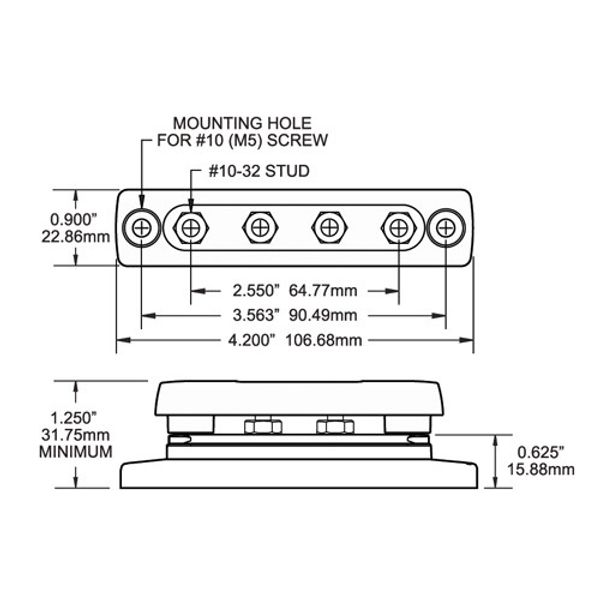

| Height Description | 31.75mm (1-1/4") minimum |
| Width | 22.86mm (0.9") |
| Length | 106.68mm (4.2") |
| Dimensions | Distance Between Mounting Hole Centres: 90.49mm (3.6"), Mounting Hole: #10 (M5) |
