Blue Sea Mini Switch On/Off with Key 300A
Product code:
8-26005
Manufacturer SKU:
6005-BSS
M-SERIES BATTERY SWITCHES300 Ampere continuous rating for outboards and small gasoline or diesel engines.Tin-plated copper studs for maximum conductivity and corrosion resistance Read more
Description
M-SERIES BATTERY SWITCHES
300 Ampere continuous rating for outboards and small gasoline or diesel engines.
Tin-plated copper studs for maximum conductivity and corrosion resistance
Studs accept 3/8" (M10) ring terminals
One-piece terminal stud design never loosens over time
7/8" (22.22mm) stud length accepts multiple cable terminals
Isolating cover with three snap-in side pieces protects rear contacts and allows wire access in any direction

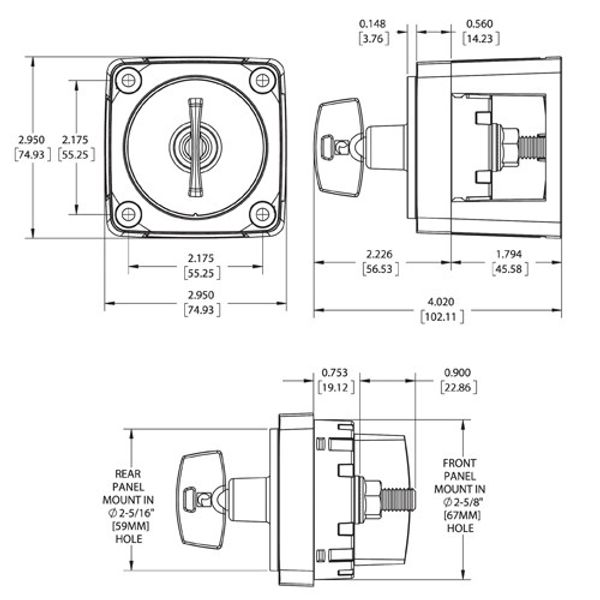

Case design allows surface, rear, or front panel mounting options
Regulatory
CE marked, ISO 8846
UL Listed - UL 1107 electric power switches
Meets ABYC requirements
Meets UL1500 and SAE J1171 external ignition protection requirements
IP66 protects against powerful water jets
Paralleling Link BUS 8-29159
| Brand | Blue Sea Systems |
| Colour | Red |
| Voltage Description | 48V Maximum |
| Amps Description | Continuous: 300A, Intermittent: 500A (5 minutes), Cranking: 1500A (10 seconds) |
