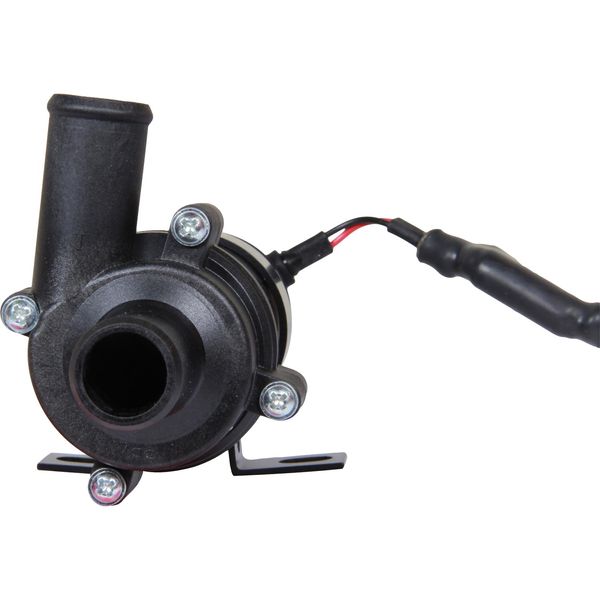

Johnson Circulation Pump CM30P7-1 with 20mm Ports 24V

Johnson Circulation Pump CM30P7-1 with 20mm Ports 24V

Name: Johnson Circulation Pump CM30P7-1 with 20mm Ports 24V
SKU: 10-24504-04

Product code: 10-24504-04
Manufacturer SKU: 10-24504-04

CM Series Circulation Pumps are a line of compact centrifugal pumps which combine high flow rates with very low electric current consumption, making them ideally suited for circulating fresh water in... Read more

Description

Technical Specifications:

Pump Body: PPA

Impeller: PPA

Shaft: Stainless Steel

Liquid: Water/glycol mixture; max 60% glycol, fresh water

Liquid temperature: Min -40°C, Max +100°C

System Pressure: 2.5 Bar max

Port Size: Ø 16mm (5/8") hose

Dry Running: Max 30 mins

Input Power: Max 27W

Mounting: Separate universal bracket for flat services

Motor: 12/24V DC enclosed (as per IP67) permanent magnet, ball bearing mounted motor, designed for continuous operation

Dimensions (LxWxH): 177mm x 68mm x 85mm (6.97" x 2.68" x 3.35")

Weight: 0.6kg (1.3lbs) with bracket

Specifications

Flow Rate Description	22.5 LPM (5.9 US GPM)
Continuously Rated	Yes
Hose Size	20mm / 3/4"
Inlet Outlet	For 20mm (3/4") ID Hose
Brand	Johnson
Series	CM30P7
Model	10-24504-04
Voltage Description	24V DC
Amps Description	1.1A
Fuse	1.6A
Height Description	85mm
Width	68mm
Length	177mm
Temperature Range	Min -40°C, Max +100°C

Ask a question

Johnson Circulation Pump CM30P7-1 with 20mm Ports 24V

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Technical Specification

< table PUBLIC "table" "ComplexTable.dtd">

Part Number	10-24503-03	10-24503-04
Model	CM30P7-1	CM30P7-1
Volts	12V	24V
Hose Connection	Ø 16 mm(5/8")	Ø 16 mm(5/8")
Back Pressure Par	0.1	0.15
Back Pressure kPa	10	15
Back Pressure ft	3.3	6.6
Flow I/MIN	20.0	17.5
Flow USGPM	5.3	4.2
