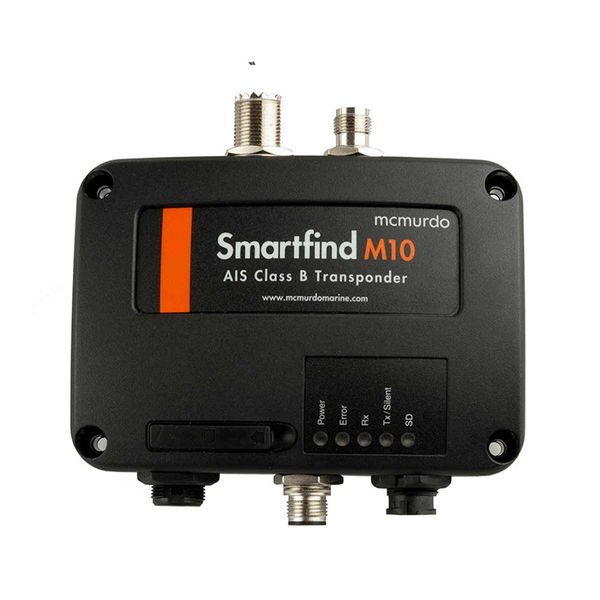

McMurdo SmartFind M10 AIS Class B Transponder
Product code:
6-30041
Manufacturer SKU:
21-200-001A
The McMurdo SmartFind M10 AIS Class B Transponder is ideal for smaller non SOLAS vessels (where a Class A Transponder is not necessary).The SmartFind M10 transmits vessel position information... Read more
Description
The McMurdo SmartFind M10 AIS Class B Transponder is ideal for smaller non SOLAS vessels (where a Class A Transponder is not necessary).
The SmartFind M10 transmits vessel position information and receives all AIS targets within 20 miles of the boat (typical).
Using its inbuilt GPS receiver, the SmartFind M10 transponder determines position, speed and course, and once combined with other navigational information, is automatically transmitted without user interaction. When received by other vessels and coast stations, the data provides a live graphical display of traffic in the area.
The Class B transponder integrates with navigation systems, supports NMEA2000 and NMEA0183 output, meets IEC 62287 and related standards, and also features an optional WiFi interface and USB connectivity.
Utilising the SD card slot, the transponder can be quickly and easily used as a data recorder, enabling the capture of all messages, assisting in system and safety monitoring, including incident investigation. Recorded data is logged and stored.
The Silent option setting allows the user to temporarily stop the broadcast of identifying information on occasions where either privacy or security is required.
WiFi enables wireless connectivity to a user’s smart device (tablet, phone, laptop) allowing operational flexibility.
- Led Indication: Power, Error, AIS Rx, Tx/Silent, SD
- Tx Power Output: 2 Watt (33 dBm ±1.5dB)
- Rx Sensitivity: < 107 dBm @20% PER
- NMEA 2000: Connector
- NMEA 0183:
(RS-422), Support two NMEA 0183 interfaces
Baud rate configurable (default 38,400 bps)
Separate Tx/Rx baud rate
- GPS: 50 channel, GPS antenna included
- Wireless connection: IEEE 802.11 b/g/n (Smartfind M10W only)
Key Features
Flawless integration with a wide range of navigation systems
Supports standard NMEA0183 interfaces as well as USB connectivity
Supports the latest generation of NMEA2000 navigation display devices
Integration with the other navigation equipment
SD card slot which can be used as a data logger
Silent mode allows user to temporarily stop broadcast of identifying information
| IP Rating | IPX2 |
| Brand | McMurdo |
| Voltage Description | 12V - 24V DC |
| Wattage | <4 Watt @ 12V |
| Approvals | CE, FCC |
| Height Description | 36mm |
| Width | 128mm |
| Depth | 88mm |
| Weight | 250g |
| Operating Temperature | -15 to +55 °C |
