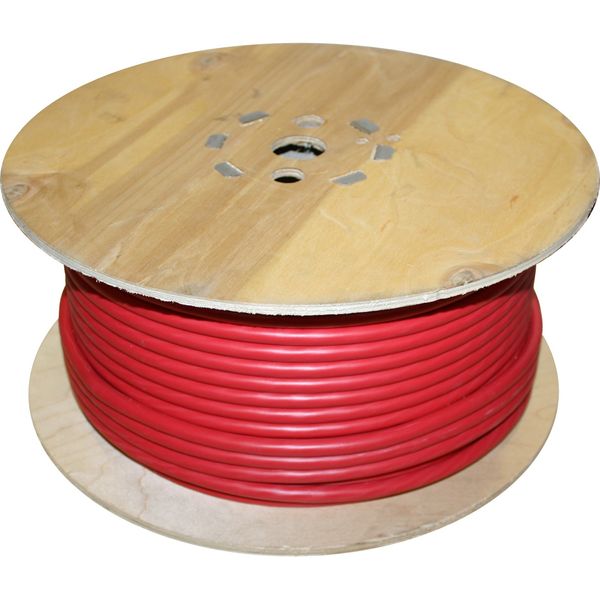

AMC 25mm² Red Battery Cable (100 Metres)
Product code:
712919-K
Manufacturer SKU:
934R.100
Auto Marine flexible PVC electrical cable, suitable for use as battery cable or starter cable in marine and automotive applications. The cable features a multi strand copper conductor with a red PVC... Read more
Description
Auto Marine flexible PVC electrical cable, suitable for use as battery cable or starter cable in marine and automotive applications. The cable features a multi strand copper conductor with a red PVC insulation to represent a positive electrical connection. This outer sheath gives the cable resistance to petrol, lubricating oils and diluted acids.
This 25mm² battery cable can also be used to operate bow thrusters as well as winches and windlasses.
| Style | Battery Cable |
| Cable Conductor | Plain Copper |
| Cable Cores | 1 Core |
| Unit of Sale | 100 Metres |
| Cable Insulation | PVC |
| Conductor Specifications | 196/0.40 mm |
| Cable Conductor Cross Section Description | 25mm² |
| Resistance Per Metre at 20degC | 0.0008 Ohms |
| Shape Description | Round |
| Brand | AMC |
| Colour | Red |
| Voltage Description | Max. 60V (suitable for 12V DC & 24V DC systems) |
| Amps Description | Nominal Current Rating: 170A |
| Temperature Range | -15°C to +70°C |
| Diameter Description | OD: 9.7mm |
| Country of Origin | United Kingdom |
