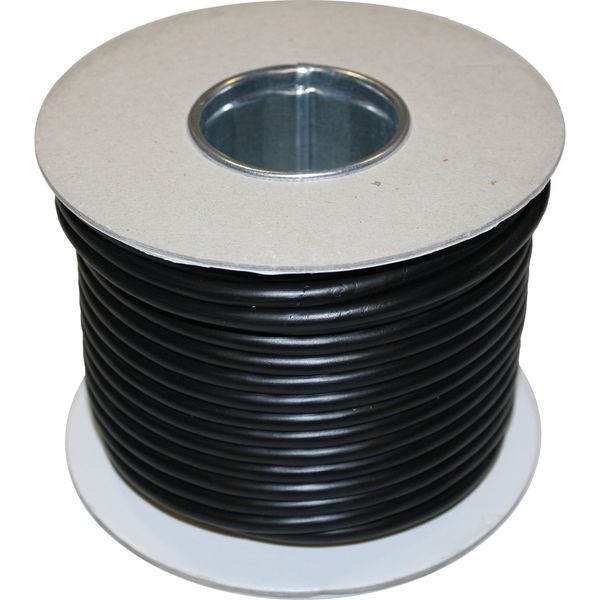

AMC 4 Core TW Cable 32/0.20 1.0mm2 30m Black
Product code:
8-00863-BK
Manufacturer SKU:
TW04/01.30
Manufactured to ISO 6722:2006 (Class B) Plain copper conductors PVC sheathed 70°C
Description
Manufactured to ISO 6722:2006 (Class B) Plain copper conductors PVC sheathed 70°C| Maximum Load Description | 12V = 198 Watts, 24V = 396 Watts |
| Style | Thin Wall Cable |
| Cable Conductor | Plain Copper |
| Cable Cores | 4 Core |
| Unit of Sale | 30 Metres |
| Cable Inner Colours | Red, Black, Green & White |
| Cable Insulation | Hard Grade PVC |
| Conductor Specifications | 4 x 32/0.20 mm |
| Cable Conductor Cross Section Description | 1.0mm² |
| Replaces | 712413-A & 734413-A |
| Resistance Per Metre at 20degC | 0.0185 ohms |
| Shape Description | Round |
| Brand | AMC |
| Colour | Black |
| Voltage Description | Max. 60V (suitable for 12V DC & 24V DC systems, excluding Hi Tension circuits) |
| Amps Description | Nominal Current Rating: 16.5A |
| Approvals | Cores manufactured to ISO 6722-1:2011 (Class B), Plain copper conductors to BS EN 60228:2005 |
| Temperature Range | -40°C to +105°C (with excursions to 120°C max) |
| Diameter Description | Max Outside Diameter: 5.8mm |
| Country of Origin | United Kingdom |
