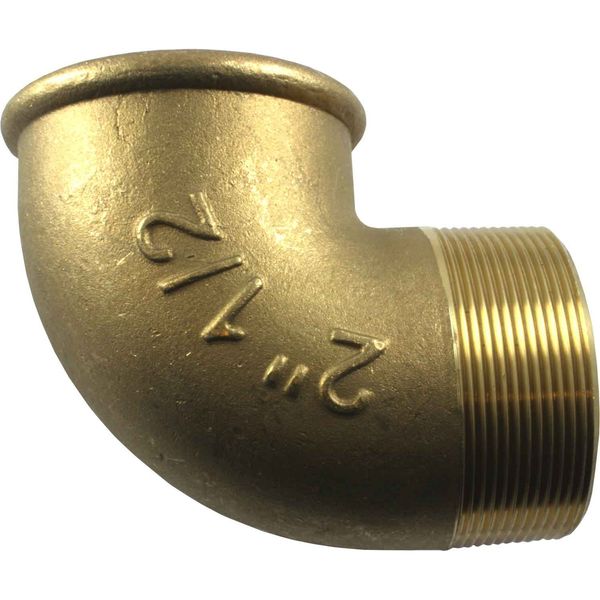

Maestrini Brass Compact 90° Elbow (2-1/2" BSPT Male / BSP Female)

Name: Maestrini Brass Compact 90° Elbow (2-1/2" BSPT Male / BSP Female)
SKU: 407049

Product code: 407049
Manufacturer SKU: 0092L

Maestrini 2.5"bsp pipe connecting compact elbow, male / female bop threaded, made from brass. A 90° compact bop pipe elbow is used to connect two pieces of equal sized pipe at a right angle where space... Read more

Description

Please Note: All fittings used for through hull applications must be correctly electrically bonded to ensure protection from electrolytic corrosion. Brass is susceptible to dezincification and is not recommended for below waterline through hull applications.

Specifications

Material	Brass
Fitting	Elbow
Primary Construction	Brass
Thread Connection	BSP\|BSP Tapered
Thread Fitting Size	2-1/2"
Thread Gender	Female\|Male
Pressure Rating	232 PSI (16 Bar)
Thread Size	2-1/2" BSP Taper Male & 2-1/2" BSP Female Parallel
Brand	Maestrini
Length	Nominal Length to Hole Centre Male Side: 92.5mm, Female Side: 73.5mm
Country of Origin	Italy
Angle	90 Degree
