Racor 1000FVMA Fuel Filter (10 Micron / Clear Bowl & Heat Shield)

Name: Racor 1000FVMA Fuel Filter (10 Micron / Clear Bowl & Heat Shield)
SKU: RAC-1000FVMA10

Product code: RAC-1000FVMA10
Manufacturer SKU: 1000VMA10

Racor 1000FVMA diesel turbine fuel filter is designed to protect your precious engine components from various contaminants such as dirt, rust, algae, asphaltenes, varnishes and water.The Racor... Read more

Description

Racor 1000FVMA diesel turbine fuel filter is designed to protect your precious engine components from various contaminants such as dirt, rust, algae, asphaltenes, varnishes and water.

The Racor 1000FVMA10 diesel filter comes complete fitted with a see-through bowl and a 10 micron element. The turbine has a maximum flow rate of 681 LPH through a port size of 7/8"-14 UNF.

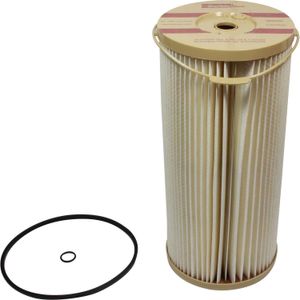

Replacement Racor turbine elements (2020 series) are available to order with various micron ratings. Racor 2020 turbine elements measure 110mm diameter x 249mm high.

The Racor 1000FVMA marine turbine is designed to be fitted on the vacuum side of the fuel transfer pump for maximum efficiency. The Racor turbines work through a three stage process; Separation Coalescing & Filtration explained below.

- Stage One: Water Separation: As fuel enters into the filter assembly, it moves through the turbine centrifuge and spins off large solids and water droplets which fall to the bottom of the collection bowl.

- Stage Two: Coalescing: Small water droplets bead-up along the sides of the chamber and on the element, once heavy enough these too fall into the bottom of the collection bowl.

- Stage Three: Filtration: Algae, rust and dirt are then filtered from the fuel by the Aquabloc element, as the elements are waterproof they are much more effective and long lasting than water absorbing elements.

Specifications

Flow Rate Description	681 LPH (180 US GPH)
Spin On	No
Style	Turbine Filters
Fuel Filter Bowl Style	Transparent with Heat Shield
Element	10 Micron
Filter Configuration	Single
Heat Deflection Shield	Yes
Integral Primer Pump	No
Maximum Pressure	15 PSI (1 bar)
Pressure Drop	Clean: 0.25PSI (1.7 kPa)
Replaces	Racor 1000MA (301706)
Brand	Racor
Series	1000 Series
Application	Diesel
Model	1000FVMA
Approvals	UL Listed, US Coast Guard & ISO Approved
Height Description	559mm (22")
Width	152mm (6")
Depth	178mm (7")
Dimensions	Element Removal Space: 254mm
Size	1-5/16"-12 UN-2B Female Ports (SAE 1926-1) 2x 3/4" NPTF Adapters & 2x Port Plugs Supplied
