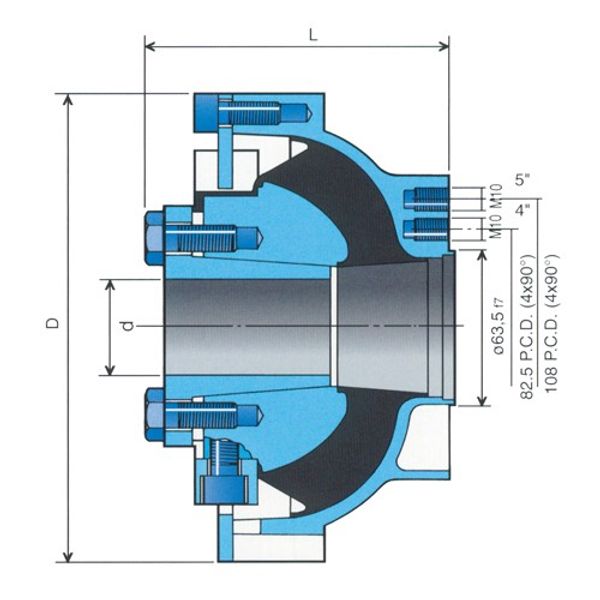

4" + 5" Centaflex M160 PRM 1-1/2" Shaft with Stud Kit
Product code:
N-40033
Manufacturer SKU:
4"+ 5" CENTAFLEX M160
Eliminate shaft-transmitted noise and vibrationCushion torsional stress and shock loadsAccommodate shaft misalignment and movementsM SERIESInterrupts shaft-transmitted noise... Read more
Description
Eliminate shaft-transmitted noise and vibration
Cushion torsional stress and shock loads
Accommodate shaft misalignment and movements
M SERIES
Interrupts shaft-transmitted noise & vibration between engine/transmission & the boat's hull - no metal-to-metal contact.
Angular misalignment capacity up to 2° &torsional flexibility up to 15°.
The large volume, highly elastic, encased element absorbs torsional shocks and stress without excessive deformation.
Design allows the transfer of propeller thrust to the gearbox thrust bearing.
Torque capacities 175Nm - 500Nm
Suitable for 10HP to 100HP at 1500rpm
Comes with pack of nuts for the prop shaft. Please note gearbox stud and nut will need to be purchased separately: SG-210 and SG-211.
| Shaft Size | 1-1/2" |
| Flange | 4" & 5" |
| Torque | Torque capacities 175Nm - 500Nm |
| Brand | Centa |
| Model | M160 PRM |
| Length | 135mm |
| Diameter Description | 205mm |
This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.
| <style id="1" type="2">Part No</style> | <style id="1" type="2">Flange Size</style> | <style id="1" type="2">Shaft Size</style> |
| N-40033 | 4" & 5" | 1. 1/2" |
| N-40036 | 4" & 5" | 30mm |
